The "F.F.F." Rule: Why Your Replacement Monitor Doesn't Fit (And How to Fix It)

There is nothing worse for a Slot Technician than waiting two weeks for a replacement monitor, taking the machine apart, and then realizing... it doesn't fit.

Maybe the screw holes are 5mm off. Maybe the bezel is too thick for your Konami Podium door to close. Or maybe you plugged it in, but the Elo game board doesn't recognize the touch input.

At ClaraTech, we see this happen every day. The problem usually comes down to one engineering principle: F.F.F. (Form, Fit, and Function).

If you are sourcing replacement monitors for Casinos or Industrial Kiosks, here is how we use the F.F.F. rule to ensure a 100% drop-in match.

1. Form (The Shape)

"Form" isn't just screen size. It’s about the physical architecture.

• The Trap: A standard 21.5" desktop monitor is not the same as a 21.5" slot monitor.

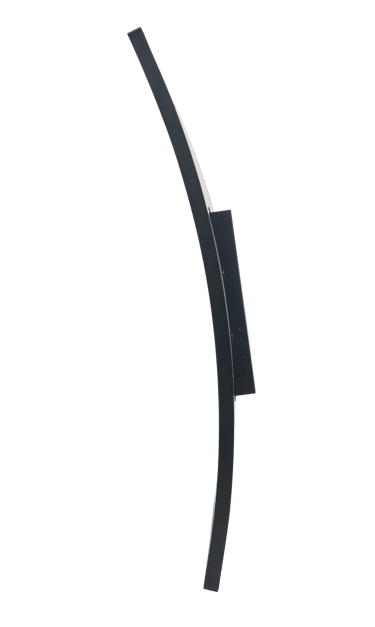

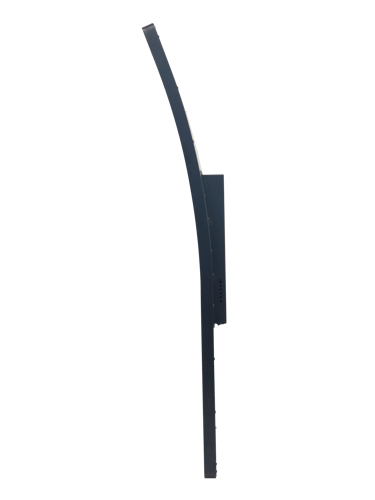

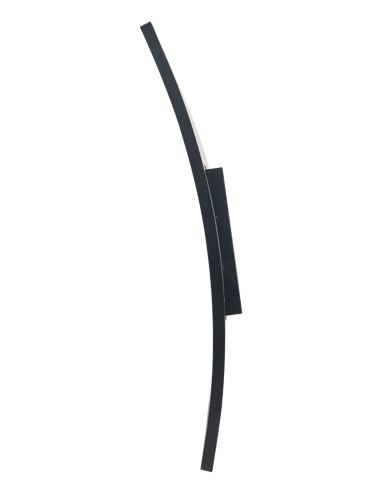

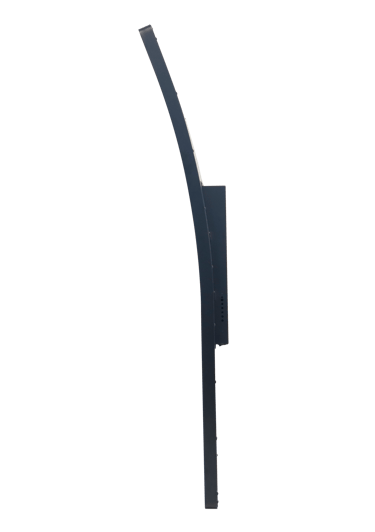

• The Reality: Is it a "J-Curve" (like the Bally Wave) or a "C-Curve"? Is the aspect ratio 16:9 or the older 16:10 (common in Aristocrat Viridian)? Getting the form wrong means the glass won't align with your cabinet's cutout.

2. Fit (The Mechanicals)

This is where 80% of generic "Universal Monitors" fail.

• Mounting Brackets: Does your Elo Open Frame use side brackets or VESA mounting?

• Bezel Dimensions: Machines like the Konami Podium have very tight tolerances. If the replacement screen has a bulky frame, the machine door won't lock.

• Our Solution: We own the sheet metal factory. This allows us to replicate the exact side-bracket design of the original OEM part, ensuring it drops right into the existing chassis.

Professional Tip: Looking for a monitor that strictly follows the F.F.F. standard? Check out ClaraTech Series A (Slot Replacement)

3. Function (The Protocol)

Even if it fits physically, does it work electronically?

• Touch Protocol: Does your IGT machine require 3M Serial (RS232), or does it use modern USB HID?

• Voltage: Is your cabinet running on 12V or 24V?

• Brightness: A standard 250-nit screen will look dim and washed out on a casino floor. You typically need 300-500 nits.

Stop Guessing. Use the Guide.

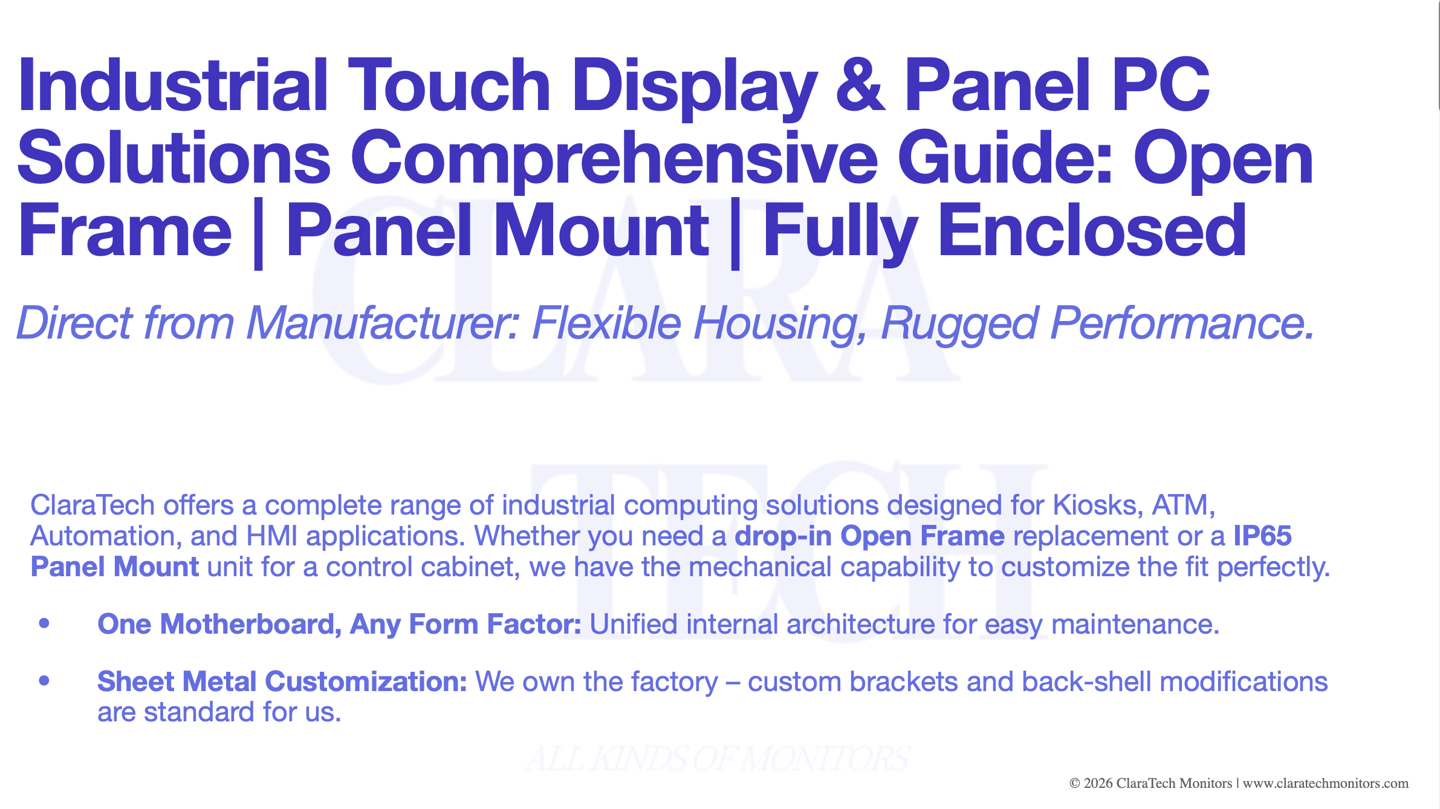

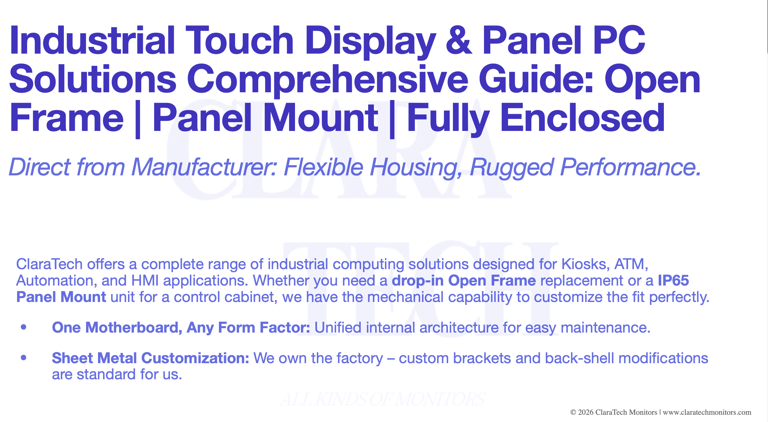

To solve the F.F.F. headache once and for all, we have consolidated all our mechanical drawings into one document.

We have categorized our industrial monitors into three simple series to match your mounting needs:

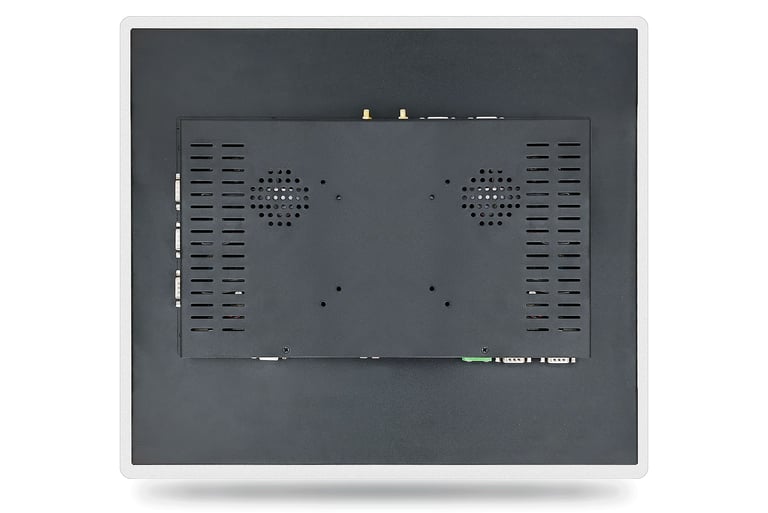

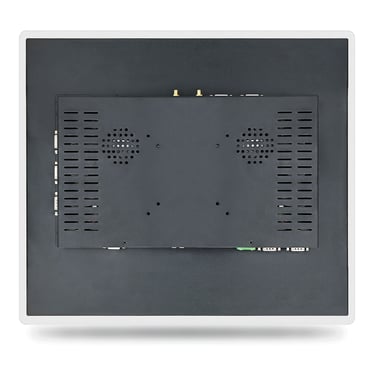

• Series A: Open Frame (Best for Kiosk & Slot retrofits)

• Series B: Panel Mount (IP65 Waterproof for CNC/Industrial)

• Series C: Chassis / VESA Mount

Stop Searching for Parts. We have the exact Drop-in Replacement you need.

• ✅ Form: Matches legacy cabinets

• ✅ Fit: No modification needed

• ✅ Function: Plug & Play

[ View Series A Specifications ]
