32″–55″ C-Curve Casino Monitors with PCAP Touch and 4K Options for Slot Machine Cabinets

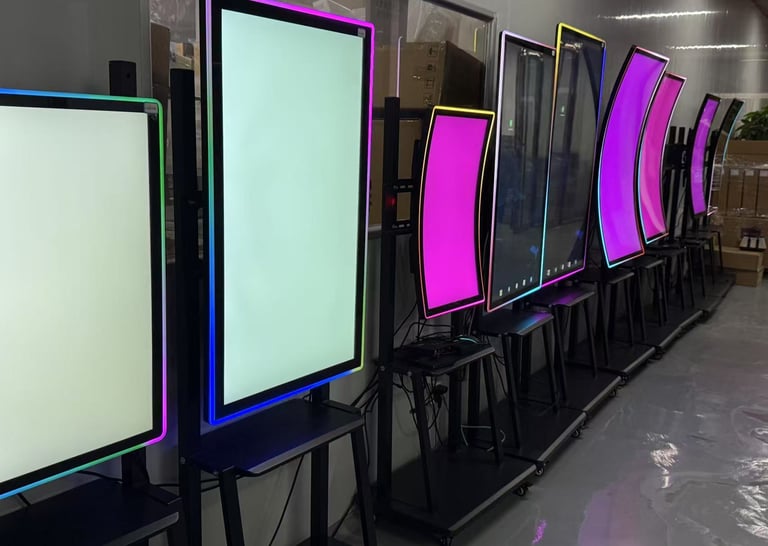

Available in 32″, 43″, 49″ and 55″ sizes, the Basic configuration includes FHD resolution, 10-point PCAP touch and 1500R curvature. Optional upgrades include 4K UHD resolution and a programmable RGB LED halo for new slot machine cabinet projects.
C-Curve Touch Screen Monitor Key Features
Sizes: Standard 32″, 43″, 49″ and 55″ models, with larger custom sizes available by project.
Standard Configuration: FHD 1920 × 1080 resolution, 1500R curvature, 300 cd/m² brightness, 10-point PCAP touch, and HDMI and VGA video inputs. DisplayPort (DP) is included with the optional 4K configuration.
Premium Configuration: 4K UHD 3840 × 2160 available as a premium version.
Custom Curvature: 1200R, 1000R and 800R available for custom projects.
Touch: 10-point PCAP touch is included in the Basic configuration. A 3M-compatible touch protocol is available on request as an optional configuration.
Cover Glass: Optional and project-configurable, with standard or reinforced 4 mm+ options available, plus optional AG, AF or AR surface treatments.
LED Halo: Basic configurations offer no halo or a preset LED halo. A programmable RGB LED halo is available as a made-to-order option.
Sample Availability: Sample units available for standard 1500R models in 32″, 43″, 49″ and 55″ sizes.
Monitor Format: Complete C-Curve LCD monitor units with rear housing and project-specific mounting support for OEM slot machine and EGM cabinet integration.
Need another cabinet format? Explore our full range of casino gaming displays for OEM cabinet projects .
For cabinet opening, active area and installation-clearance preparation, see our Casino Monitor Cabinet Fit Guide.
For curvature specifications and cabinet-fit considerations, see our R800 and R1500 curvature guide.
See Our C-Curve Casino Monitors in Action
This 32″ 4K C-Curve project example shows a real casino monitor undergoing burn-in testing, 10-point PCAP touch verification, interface and rear-structure review, protective foam packing, and small-batch shipment preparation.
Sample Configuration
43″ C-Curve display with 4K UHD resolution, 1500R curvature, PCAP touch and a programmable RGB LED halo.

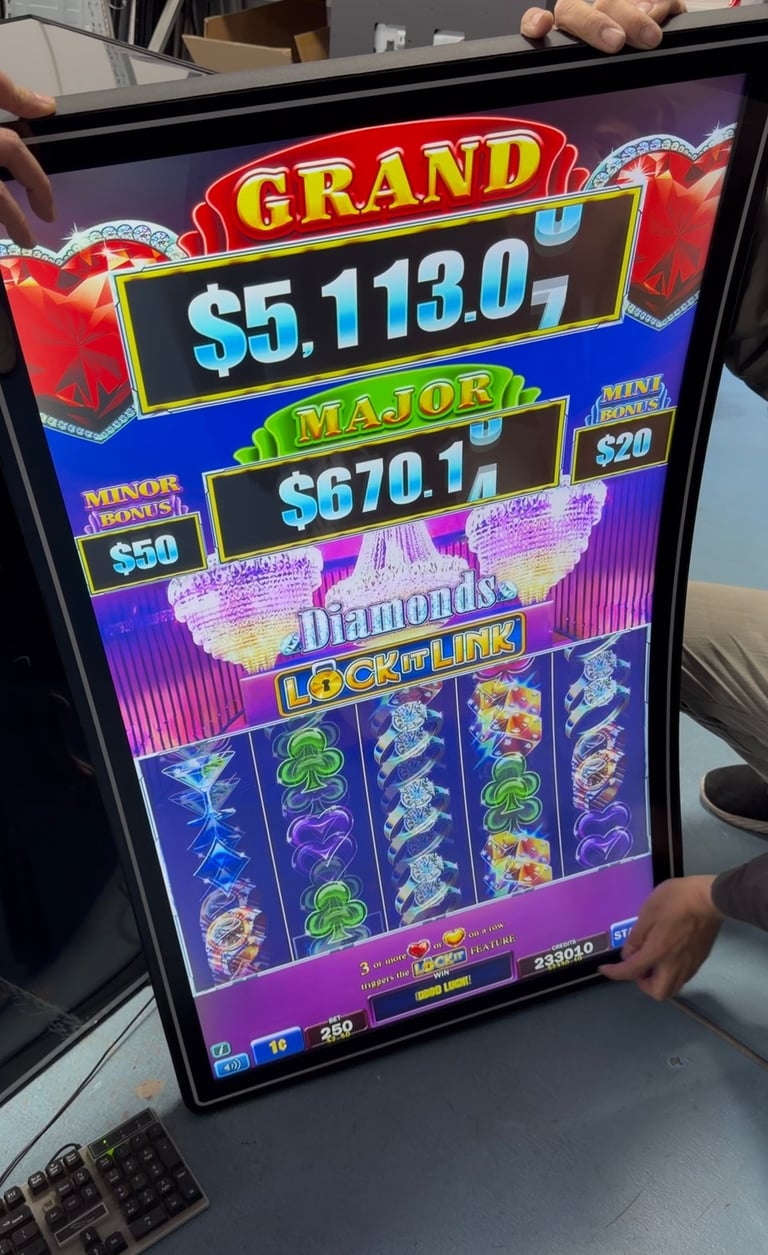

Touch & Interface Validation
The Basic configuration includes 10-point PCAP touch and HDMI and VGA video inputs. DisplayPort is included with the 4K upgrade. A 3M-compatible touch protocol is available on request as an optional configuration.
Display & Halo Testing
Display performance, brightness configuration and programmable RGB LED halo functions can be evaluated for the target cabinet project.
Sample to Production
After the sample configuration and cabinet fit are approved, small-batch or volume production can be arranged based on the confirmed requirements.

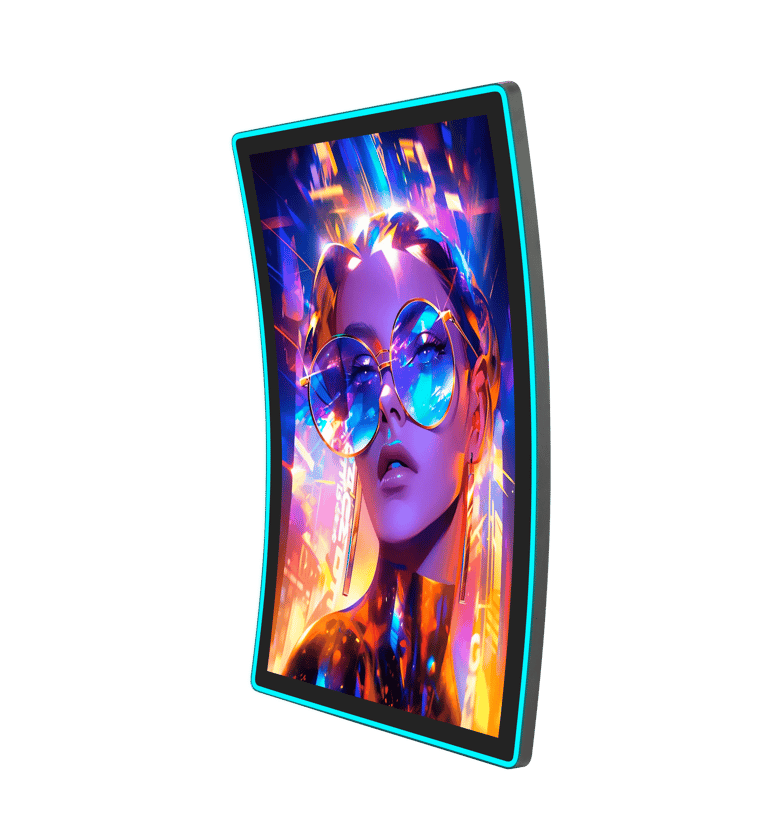

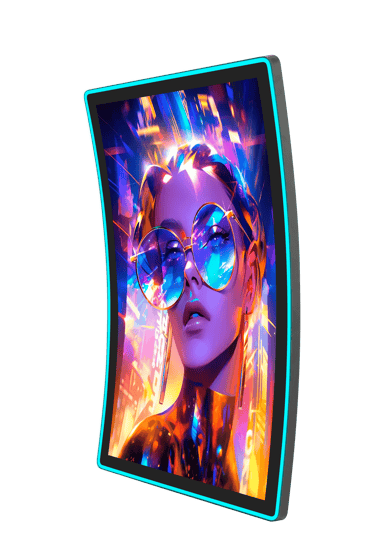

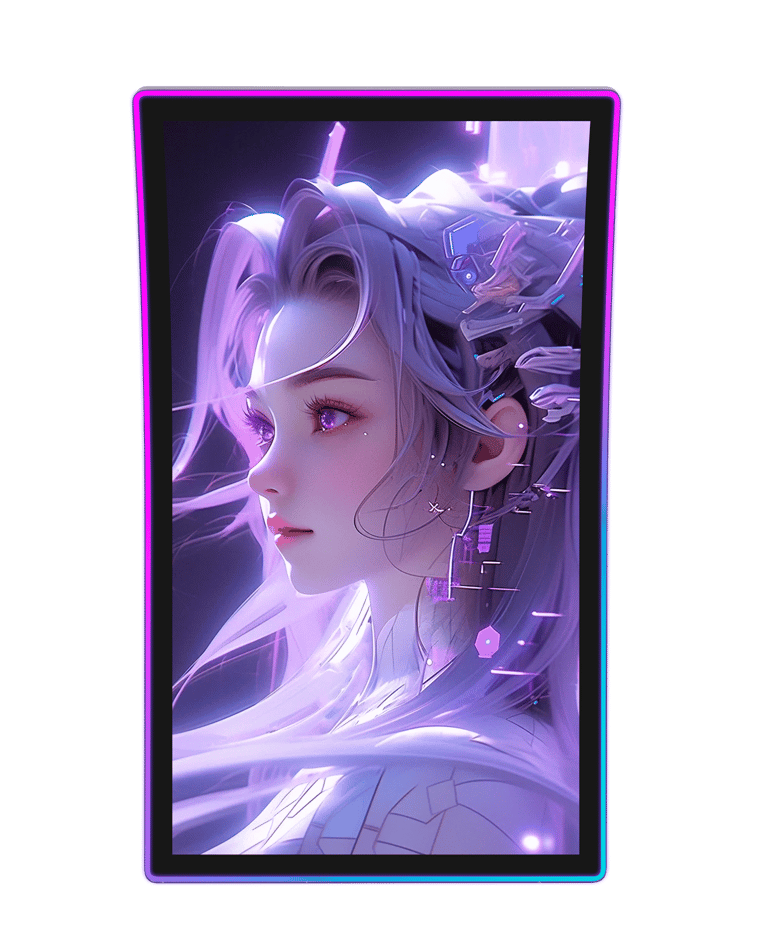

43″ C-Curve Sample Configuration
The sample shown features 4K UHD resolution, 1500R curvature, PCAP touch and a programmable RGB LED halo for casino cabinet evaluation.
C-Curve Cabinet Drawing & Fit Review
Cabinet drawings or opening dimensions help us review the selected monitor’s fit, mounting space, rear clearance, cable routing and LED halo clearance. For an initial quotation, send your preferred screen size, quantity and any available configuration requirements. Mechanical fit can be reviewed as project details become available.
The optional C-Curve Cabinet Fit Review Checklist helps organize cabinet dimensions, mounting details and display requirements for engineering review.
Cabinet Opening & Bezel Clearance
Cabinet opening dimensions, mounting space, bezel clearance and visible area can be reviewed before sample quotation.

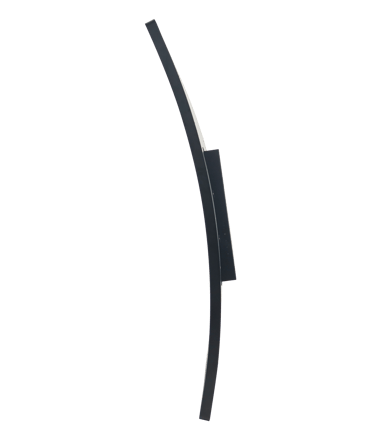

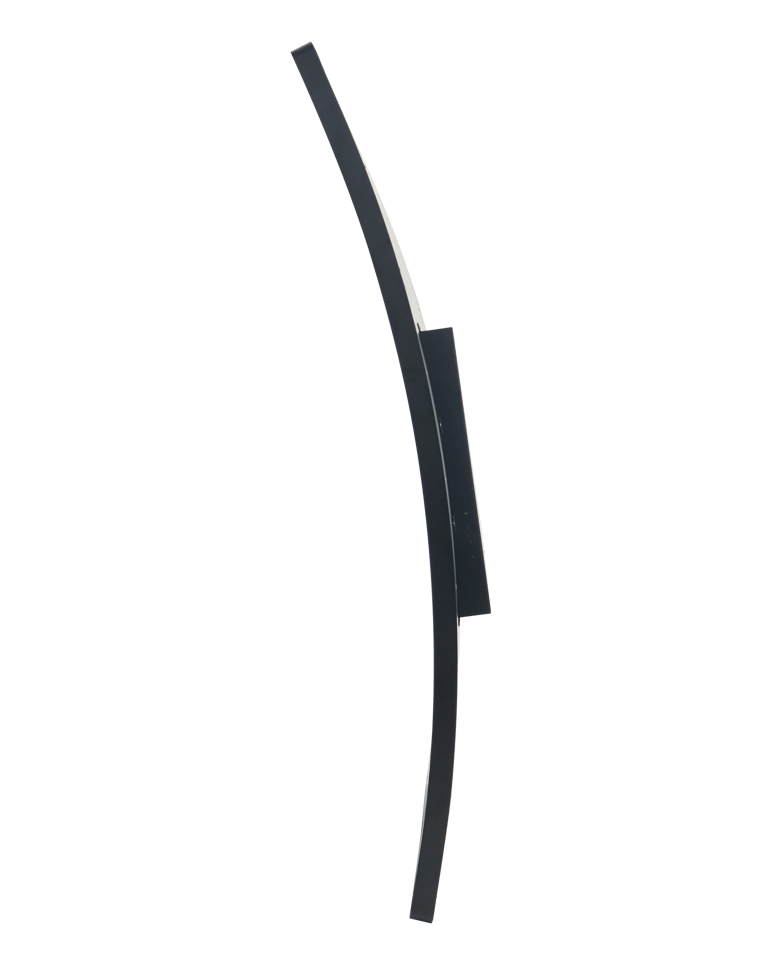

Curvature & Glass Profile
1500R is the standard curvature. Custom 1200R, 1000R and 800R options can be reviewed based on cabinet structure and glass profile.
Mounting & Rear Structure
Back cover, mounting brackets, mounting points, rear clearance and installation direction can be checked for the selected display size.
Touch & Video Interfaces
C-curved touch screen monitors include 10-point PCAP touch in the Basic configuration. For integration with your host system, please specify the operating system, required touch connection and any controller compatibility requirements. A 3M-compatible touch protocol is available on request as an optional configuration. HDMI and VGA are included in both FHD and 4K versions; DisplayPort is included with the 4K upgrade.
Cable, Power & LED Halo
Cable direction, power input, connector clearance and optional programmable RGB LED halo control can be confirmed before sample production.
C-Curve Sample Testing & Validation

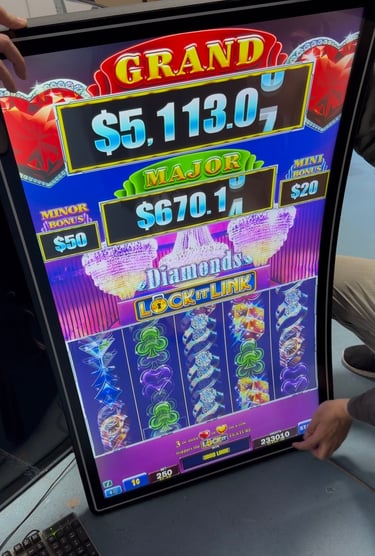

Each C-Curve sample can be checked for display performance, touch response, video inputs, brightness configuration, RGB LED halo operation and pre-shipment condition before approval and production.

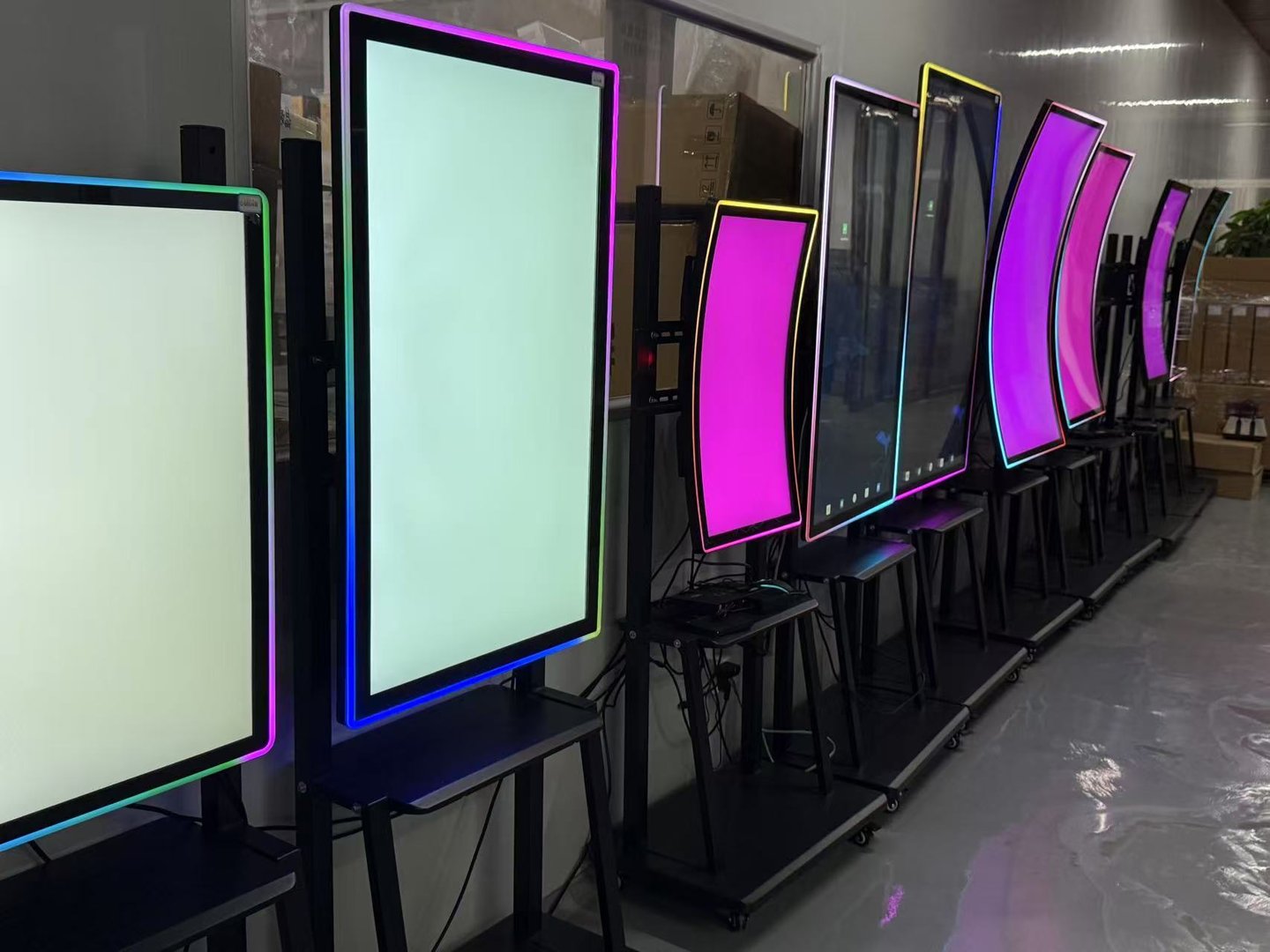

Display Performance Testing
Resolution, image quality, brightness configuration and continuous display operation can be checked before approval.
Touch & Interface Validation
The Basic configuration includes 10-point PCAP touch and HDMI and VGA video inputs. DisplayPort is included with the 4K upgrade. A 3M-compatible touch protocol is available on request as an optional configuration.

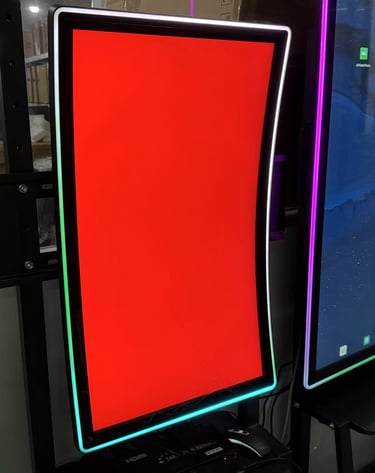

RGB LED Halo Testing
For samples configured with a programmable RGB LED halo, the lighting effects and control interface are specified according to project requirements. Programmable control is not included with the preset LED halo in the Basic configuration.
Approval to Production
After the sample configuration, test results and cabinet fit are approved, small-batch or volume production can be arranged.
Request C-Curve Sample or Volume Pricing
Send your preferred screen size, required quantity and delivery country for sample or volume pricing. Include any confirmed requirements, such as resolution, touch or RGB LED halo. If you are still selecting a configuration, we can help review the available options and confirm pricing and lead time.
