J-Curve Casino Monitors with Programmable RGB LED Integration: OEM Design Considerations

ClaraTech J-Curve displays are used in casino gaming cabinets that require a screen profile with a curved upper section and a straight lower section. Compared with a standard flat or vertically mounted display, a J-Curve monitor must be reviewed together with the cabinet opening, mounting structure, decorative trim, touch system and internal space.

For gaming equipment manufacturers and cabinet developers, selecting a J-Curve monitor is therefore not only a matter of screen size. Mechanical fit, visual area, touch compatibility and lighting integration should all be confirmed before sample approval.

This guide explains the main items to review when developing a J-Curve casino display with optional programmable RGB LED effects.

1. Understanding the J-Curve Display Format

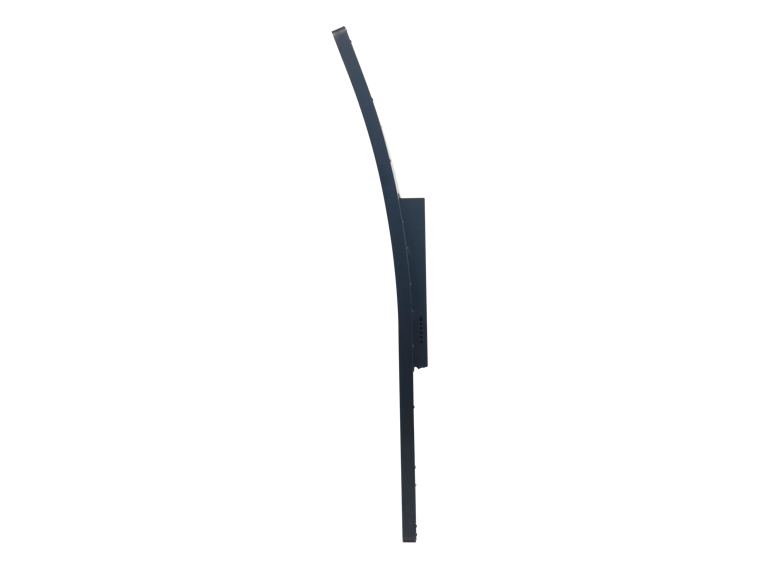

ClaraTech J-Curve monitors have a curved upper section and a straight lower section in their normal installation orientation. This screen profile can be used to create a continuous visual surface within a casino gaming cabinet.

ClaraTech J-Curve display solutions can be reviewed in standard sizes including:

• 43-inch

• 49-inch

• 55-inch

The correct model should be selected according to the cabinet structure rather than diagonal screen size alone.

Two monitors with the same nominal size can have different:

• Overall dimensions

• Curved-section profiles

• Housing depths

• Active display areas

• Mounting-hole positions

• Cable-exit locations

For this reason, the customer’s cabinet drawing or installation-space drawing should be reviewed before confirming the sample configuration.

2. Confirm the Resolution and Gaming-System Output

4K UHD 3840 × 2160 can be reviewed for J-Curve casino display projects requiring detailed graphics and large-format gaming content.

Before selecting a 4K UHD 3840 × 2160 configuration, the equipment manufacturer should confirm that the gaming system supports the required output resolution.

The review should include:

• Graphics-card output

• Display controller compatibility

• Cable specification

• Signal stability

• Required video-input interface

• Software scaling

• Operating-system settings

Selecting a high-resolution panel without checking the complete signal chain can lead to scaling problems, unstable output or incorrect image positioning.

3. Review the Curved Profile and Cabinet Opening

The upper curve is one of the key mechanical characteristics of ClaraTech J-Curve monitors.

The curve radius and overall display profile should be checked against the cabinet opening rather than confirmed from nominal screen size alone.

Where available, the customer should provide a STEP/STP file or dimensioned 2D drawing so the curved section, decorative trim, mounting references, and internal clearance can be reviewed before sample production. Final mechanical fit should still be verified by installing the physical sample in the actual cabinet.

The cabinet opening, trim and surrounding structure must follow the display profile accurately. Even a small mismatch can result in:

• Uneven gaps

• Pressure on the cover glass

• Incomplete visible image area

• Interference with cabinet trim

• Incorrect mounting alignment

• Limited internal clearance

Before producing a sample, customers should provide available information such as:

• Cabinet front-opening dimensions

• Mounting-hole positions

• Internal depth

• Required screen angle

• Decorative trim dimensions

• Cable-routing direction

• Front-glass or cover-glass requirements

• 2D or 3D cabinet drawings, when available

ClaraTech can review customer-provided drawings to assess display fit and mounting feasibility. Final compatibility should be verified by installing and testing the sample in the actual cabinet.

4. Confirm the PCAP Touch Configuration

Projected capacitive touch, commonly referred to as PCAP touch, can be integrated into J-Curve casino displays.

However, PCAP touch performance depends on more than the touch sensor itself. The complete configuration should be reviewed, including:

• Touch controller

• USB communication

• Touch protocol

• Cover-glass thickness

• Number of touch points

• Operating system

• Driver requirements

• Grounding

• Electrical interference

• Final cabinet structure

Where required, 3M-compatible touch protocol support can be reviewed according to the project.

Touch testing should be performed using the customer’s actual gaming platform whenever possible. A touchscreen that operates correctly on a standard computer may behave differently with the final controller, software or cabinet grounding arrangement.

5. Optional Programmable RGB LED Integration

Selected J-Curve display projects can include an optional programmable RGB LED bezel or programmable RGB LED frame.

The lighting system can be developed to support cabinet branding, attraction sequences or game-related visual effects, subject to confirmation of the control method and system interface.

The LED configuration should be reviewed separately from the LCD and touch specifications.

Important items include:

• LED placement

• Single-sided or multi-position lighting requirements

• Required colors and effects

• Brightness range

• Power input

• Control method

• Communication interface

• Cable routing

• Cabinet-controller compatibility

• Heat management

A standard J-Curve monitor should not be assumed to include programmable RGB LED lighting unless the feature is listed in the approved project specification.

Where synchronization with cabinet software is required, the customer should provide information about the control signal, communication method and expected lighting behavior.

6. Brightness and Visual Performance

Brightness should be selected according to the final installation environment.

Casino cabinets may include:

• Decorative LED lighting

• Illuminated button panels

• Nearby displays

• Reflective cover glass

• Dark or brightly lit gaming floors

The target brightness should therefore be confirmed after considering:

• Cabinet position

• Ambient lighting

• Cover-glass transmission

• Gaming content

• Viewing distance

• Power consumption

• Internal temperature

Higher brightness is not automatically the best option. Increasing brightness can also increase thermal output and power requirements.

The selected brightness should balance visibility, heat management and the cabinet’s intended operating conditions.

7. Video Inputs and Cable Position

ClaraTech casino display configurations can support:

• HDMI

• DisplayPort (DP)

• VGA

The final interface configuration should match the customer’s gaming platform.

Before approving the design, the customer should confirm:

• Required signal input

• Output resolution

• Connector orientation

• Available internal cable space

• Cable length

• Power-connector position

• Signal-recovery behavior

• Legacy-system compatibility

Connector position is particularly important in curved cabinets because the display profile and surrounding cabinet structure may limit the space available for connectors and cable routing.

8. Extended Operating Requirements

Casino gaming displays may operate for extended daily periods. The display should therefore be reviewed together with the cabinet’s ventilation and thermal design.

Important considerations include:

• Expected operating hours

• Internal cabinet temperature

• Ventilation

• Controller-board location

• Brightness setting

• Power supply

• Dust exposure

• Maintenance access

• LED power consumption, when included

Configurations for 24/7 gaming applications can be reviewed according to the project.

The final operating environment should be confirmed before sample approval and volume production.

9. Sample Validation Before Volume Production

A physical sample should be evaluated inside the actual cabinet before a volume order is approved.

The sample review should include:

• Cabinet fit

• Screen profile

• Mounting alignment

• Active display area

• Touch response

• Resolution

• Brightness

• Video-input compatibility

• Cable routing

• Connector clearance

• Power-on behavior

• Thermal performance

• RGB LED operation, when included

Any required modifications should be recorded in the final specification.

Sample and production lead times are confirmed after the final configuration and order requirements are reviewed.

10. Project Documentation and Supply Continuity

Long-term supply requirements should be discussed during the project review.

ClaraTech can review:

• Approved component configuration

• Project-specific bill of materials

• Replacement requirements

• Forecast order volume

• Expected project duration

• Change-notification requirements

• Packaging requirements

• Documentation requirements

Supply continuity cannot be represented as an unconditional guarantee for every component or project. The agreed configuration and supply-support terms should be confirmed in the project specification, quotation or purchase documentation.

11. Typical J-Curve Project Review

• Standard sizes: 43-inch, 49-inch and 55-inch.

• Resolution: 4K UHD 3840 × 2160 options available according to model and project.

• Touch technology: PCAP multi-touch.

• Touch protocol: 3M-compatible touch protocol support can be reviewed by project.

• Video inputs: HDMI, DisplayPort (DP) and VGA, according to the selected configuration.

• LED option: Optional programmable RGB LED bezel or frame.

• Cabinet fit: Reviewed from customer-provided drawings.

• Mounting: Confirmed according to cabinet structure.

• Operating application: Requirements for 24/7 gaming applications can be reviewed according to the project.

• Compliance support: Requirements should be confirmed during project review.

• Standard warranty: One year.

• Lead time: Confirmed after final configuration and order requirements are reviewed.
